2020 Suzuki S-Cross UK Version

• 2020 model S-Cross with Hybrid Technology – on sale in the UK in April.

• Introduction of new 1.4-litre K14D turbocharged petrol engine with Suzuki’s Boosterjet technology now offers a greater and wider spread of torque available from 2,000rpm.

• Up to 20 per cent lower CO₂ emissions than before and 20 per cent improvement in overall fuel consumption (WLTP regulation)

• Available in three grades; SZ4, SZ-T and SZ5 with all three equipped with seven airbags and standard.

• Double sliding panoramic sunroof (SZ5 models only).

• Suzuki currently the only brand offering 4×4 availability on every model in its range (Ignis, Swift, Jimny, Vitara and S-Cross).

• ALLGRIP ‘Select’ four wheel drive available as optional equipment on SZ5 models.

• 2020 marks the 50th Anniversary of the Suzuki 4×4.

• Smartphone link audio and navigation fitted as standard on SZ-T and SZ5 grades.

• Large luggage capacity of 430 litres.

• Higher level of standard safety specification now on all S-Cross models, including collision mitigating Radar Brake Support as standard.

Introduction
The S-Cross first went on sale in October 2013 and then three years later, the facelifted model was introduced with more distinctive and upright front end styling offering a stronger and bolder road presence.

S-Cross offers ample room for five occupants with their luggage and the double sliding panoramic glass sunroof fitted as standard on the SZ5 model has one of the largest opening areas in its category (560mm).

S-Cross is one of Suzuki’s world strategic models and makes strong statements in styling, impact safety, driving performance and handling as well as offering low fuel consumption and low CO₂ emissions.

Suzuki originally created the S-Cross by combining its compact car knowledge with technologies honed for sport utility vehicles.  As a result of focusing on giving the S-Cross distinctive crossover styling, class leading space for passengers and luggage, 4WD performance and one of the lowest CO₂ emissions in the segment, it achieves a remarkable combination of styling, utility, safety, performance and fuel economy.

Suzuki manufactures the S-Cross at the Magyar Suzuki plant in Hungary; Magyar Suzuki plays an important role as Suzuki’s European production centre and has long established itself as a key manufacturing base for Suzuki’s global strategy;  The Vitara model is also manufactured there.

Specification Highlights
A full equipment table for the S-Cross range is listed at the end of this press pack and also on the media website.

Standard equipment for all models is comprehensive and the SZ4 model includes seven airbags, LED projector headlights for low and high beam, Radar Brake Support, Auto headlights & wipers alloy wheels, DAB Radio with CD, USB and Bluetooth connectivity, Adaptive Cruise Control,  dual-zone auto air conditioning and front and rear electric windows.

SZ-T adds 17-inch polished alloy wheels, rear privacy glass, keyless entry with start button, white stitching for seat trim fabric, Smartphone link audio and navigation system.

Moving up to SZ5 adds leather upholstery with heated front seats and Panoramic sunroof. The S-Cross is available in a total of six different shades of which one is a solid colour and five metallic finishes.

1.4-litre K14D Boosterjet turbocharged engine – in detail
The Boosterjet engine was developed with Suzuki’s ethos of reducing weight and size with added response and smooth power delivery to achieve the characteristics that Suzuki engines are renowned for.

The 1.4-litre engine has now been developed further for the 2020 S-Cross model and is fitted to all three model grades. It is designated as K14D and incorporates a new electric Variable Valve Timing (VVT) system for the intake side as well as new design fuel injectors and a higher pressure fuel pump. The exhaust camshaft side is controlled via a conventional Hydraulic VVT actuator.

The Dual VVT system improves engine performance by continuously varying both intake and exhaust valve timing to suit engine operating conditions and the electric motor drive intake VVT has a characteristic to shift the timing phase more smoothly regardless of engine oil temperature and engine speed. The combined effect of the two VVT’s attains optimum engine power, improved fuel efficiency and lower CO₂ emissions.

Offering the same level of power and torque of a much larger capacity normally aspirated engine (2.0-litre), it delivers an effortless drive and genuine driving pleasure.

2020 Suzuki S-Cross – UK Version Front View 3/4

Boosterjet technology is Suzuki’s own development and is characterised by improved fuel efficiency and driving pleasure made possible by using a small displacement, high torque turbocharger. By controlling the wastegate valve, which closes to create higher boost pressure during heavy load operation and remains open during normal driving, the Boosterjet system reduces pumping loss, thus achieving high levels of both power and fuel-efficiency. An air bypass valve is also utilised to prevent turbo ‘stall’ after the throttle has been closed and then quickly reopened.

Fuel is injected at a higher pressure of 360 Bar into the combustion chamber during the air intake stroke which then forms a rich mixture around the spark plug and leaner mixture around the outer edge of the piston. The tumble flow of the fuel is created by utilising a straight intake port and a complex shape piston crown design.

A variable fuel control system is also utilised that optimally monitors fuel injection pressure according to the driving situation. By widening the range of fuel injection, PM (Particulate Matter) and PN (Particulate Number) emissions are reduced across the low to high engine speed ranges. This helps promote fuel atomisation and also improves fuel combustion efficiency.

The K14D Boosterjet engine has been developed with Suzuki’s ethos of reducing weight and size with added response and smooth power delivery to achieve the characteristics that Suzuki engines are renowned for.

During development, Suzuki’s engineers virtually eliminated the typical delay in turbo power delivery or ‘lag’ by attaching the compact turbo charger directly to the cylinder head as well as incorporating the exhaust manifold into the cylinder head casting. This design ensures optimum gas flow with minimal heat loss through to the turbo unit which has a boost pressure of 1.1 Bar.

Historically, power and torque delivery from a turbo-charged engine would not have been available until much higher engine speeds, offering less flexibility to the driver. This is now enhanced even further with the adoption of the 48V hybrid system.

The new 1.4-litre engine offers benefits in performance too with a 0-62mph acceleration time of 9.5 seconds (2WD models) and a maximum speed (where permitted) of 118mph.

48V Hybrid Technology
Similar in basic principle to the 12V Hybrid system that Suzuki pioneered in 2016, which is now fitted to all manual transmission Ignis models and all Swift models, the newly developed 48V Hybrid Powertrain for S-Cross remains very lightweight in design and its components add less than 15kg to the overall weight of the vehicle.

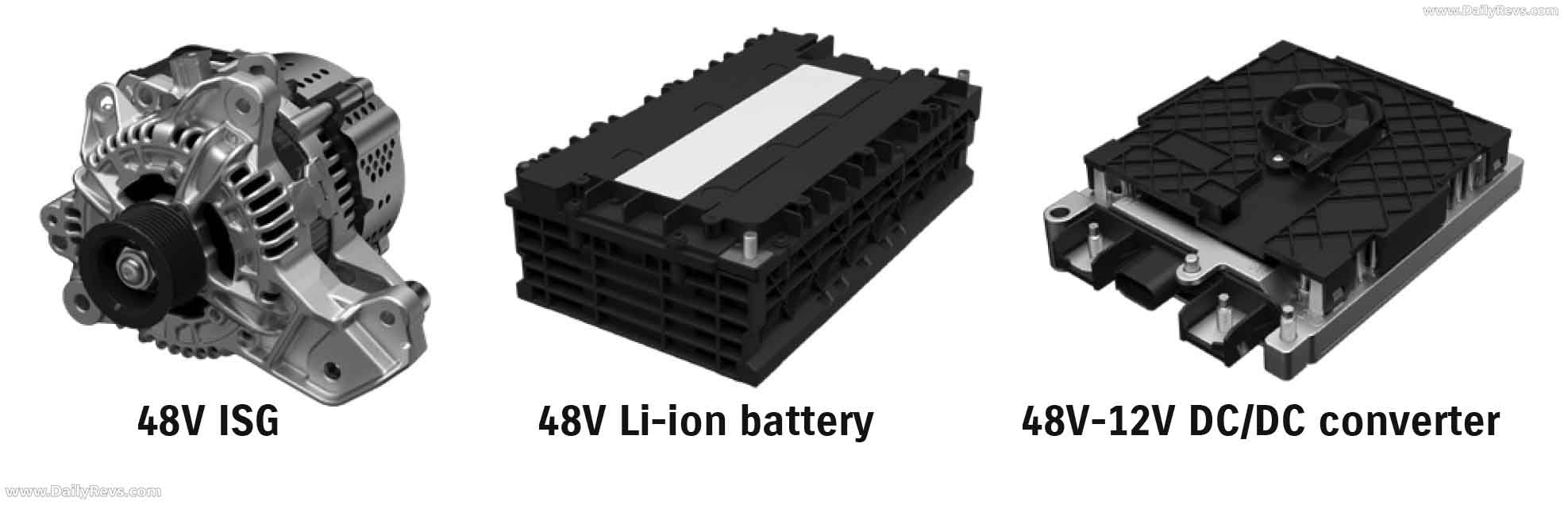

The new and higher-powered Suzuki system consists of a 48V lithium-ion battery, Integrated Starter Generator (known as ISG) and 48V-12V (DC/DC) converter to power components requiring lower voltage including lights, audio and air conditioning. The ISG acts as both a generator and starter motor, is belt driven and assists the petrol engine during vehicle take off for a higher level of torque with 235Nm available from 2,000rpm and up to 3,000rpm.

The compact and high-performance lithium-ion battery stores electrical energy recovered from deceleration and braking and incorporates an idle stop function operated via the Integrated Starter Generator. This battery, as well as the DC/DC convertor unit, are located under the front seats to assist overall weight distribution.

The 48V system also has new additional features which are Torque-fill control to raise engine response and Torque boost to make acceleration even smoother. These features enhance driving feel by adding torque from the electric motor to engine torque during acceleration.

Based on engine speed and throttle position, the engine ECU judges when the driver will accelerate and then uses electric motor assist to add additional torque and thereby bolster acceleration.

In summary, a typical condition where Torque-fill control is utilised is when the driver presses the accelerator quickly as the electric motor is able to supply additional torque to the petrol engine without delay.

Even though the Boosterjet turbo charger of the K14D engine becomes fully operational from just 2,000rpm, Torque Boost is beneficial at even lower engine speeds as it helps optimise the torque curve and provide even smoother acceleration when full throttle is applied from rest.

A further efficiency benefit of the new 48V Hybrid system is the introduction of electric motor idling when the clutch is disengaged and vehicle speed is below approximately 50mph (80km/h). This feature essentially replaces fuel injection with power from the electric motor to then control and maintain engine idling at vehicle speeds below 10mph and when stationary.

This function therefore eliminates fuel consumption under these conditions as engine momentum is electrically controlled by the ISG unit and the car is ready to re-accelerate on request with no engine restart delay.

Raising the ISG’s power supply from 12V (as per Ignis and Swift 1.2-litre) to 48V increases electric motor output to 10.0Kw which in turn increases the amount of electric motor assist and regenerated energy.

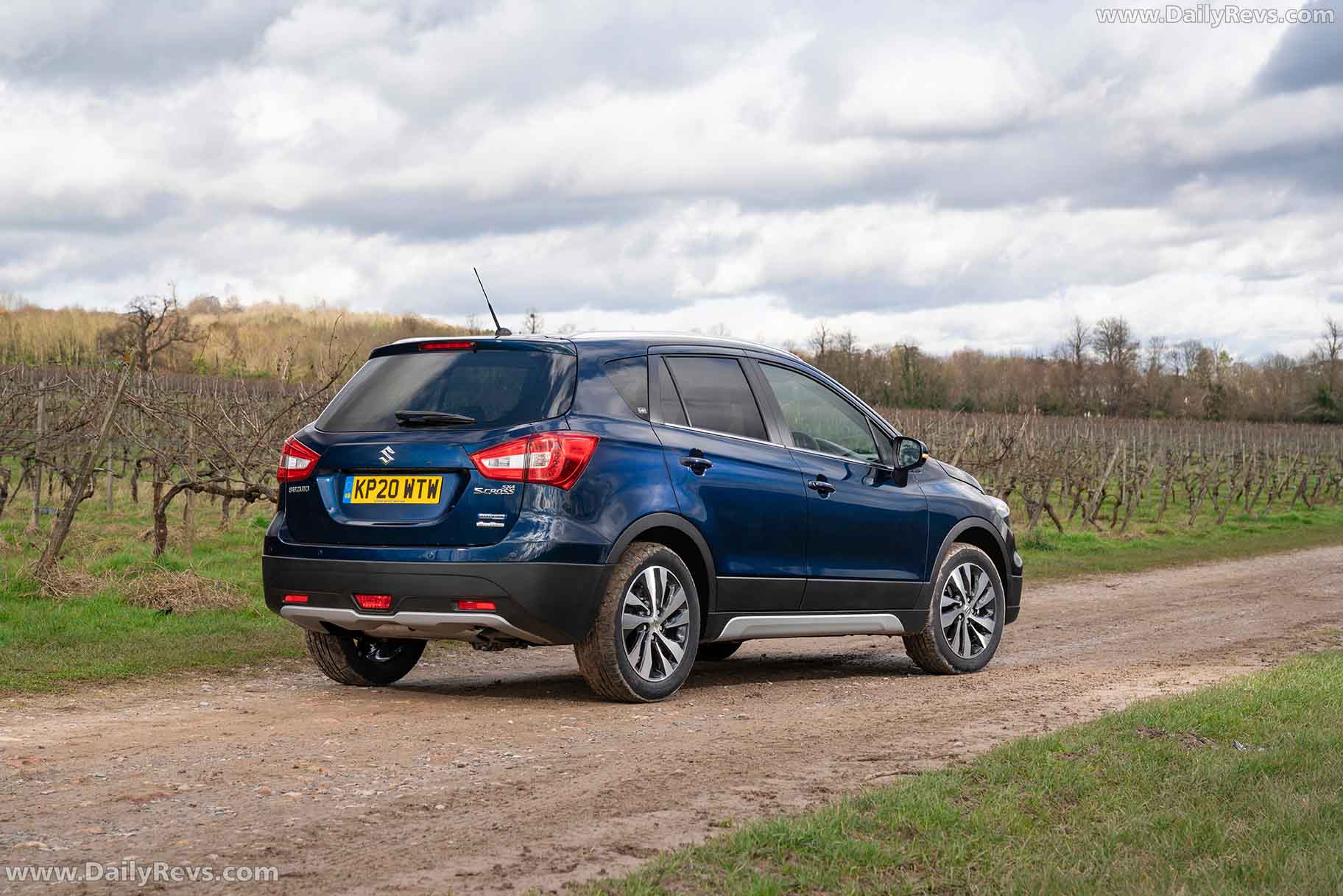

2020 Suzuki S-Cross – UK Version Rear View

Manual transmission
The S-Cross Hybrid has a six-speed manual transmission and gear ratios are optimised to help provide a good combination of performance and fuel economy. Additional measures added  include a shift lever counterweight to help provide a smooth, positive shift action.

CO₂ emissions
The 2020 model S-Cross CO₂ emissions are low thanks to the use of hybrid technology, high tensile steel and other weight saving measures in the body. Weight savings during development help the S-Cross remain one of the lightest Crossovers in its class at just 1,220kg and an increase of only 65kg for the ALLGRIP models.

Four-wheel drive is typically seen as detrimental to fuel economy and emissions performance. By contrast, Suzuki’s ALLGRIP system enables CO₂ emissions that are remarkably low for a four-wheel drive Crossover. CO₂ emissions for S-Cross with the new K14D 1.4-litre Boosterjet petrol equipped with ALLGRIP are just 110g/km when tested under NEDC regulation.

The table below illustrates the amount of CO₂ saved and the improvements in WLTP fuel consumption of the K14D Hybrid models versus previous models with K14C engine

Four-mode ALLGRIP system
Suzuki evolved its renowned four wheel drive technologies into a new generation that delivers driving pleasure and peace of mind in diverse conditions while promoting economy and limiting the burden four wheel drive cars place on the environment.

Suzuki’s ALLGRIP ‘Select’ system is available as an option on SZ5 models and incorporates four driver-selectable modes for safe, enjoyable driving on diverse surfaces.

Auto: The auto mode prioritises fuel economy in typical driving conditions and uses two-wheel drive by default. It switches to four wheel drive if it detects wheel spin.

Sport: The sport mode is optimal for twisty roads. The system makes maximal use of four-wheel drive in accordance with accelerator inputs. At low and mid-range engine speeds, the system alters the accelerator/torque characteristics to optimise engine response and cornering performance.

Snow: The snow mode is optimal for snowy, unpaved, and other slippery surfaces. The system uses four-wheel drive by default. It optimises four-wheel drive control in accordance with steering and accelerator inputs to promote traction and stability on low friction surfaces.

Lock: The Lock mode is for extricating the car from snow, mud, or sand. A limited slip differential is fitted which helps brake any slipping wheel and transfer torque to the gripping wheels.

Hill Hold Control
Available as standard equipment on all S-Cross models, Hill Hold Control makes hill starts much easier by preventing the vehicle from rolling backwards for two seconds as soon as the driver removes his or her foot from the brake to the accelerator pedal.

Suspension
The front suspension is of MacPherson strut design. During the initial development, revised shapes for the lower arms and suspension frame were utilised and improved struts adopted for higher rigidity and to also promote better driving stability. The rear wheel suspension incorporates a beam design (a closed section consisting of a pipe crushed to form a “U” shape) that Suzuki first adopted in the S-Cross. This beam design provides superior rigidity and ride comfort.

Brakes
The S-Cross has ventilated disc brakes at the front and solid disc brakes at the rear. Weight savings and drag reductions in the calliper design help provide superior braking performance and also assist fuel economy.

Safety – S-Cross Range
For the 2020 model advanced safety is standardardised through the range, with all available safety equipment included on all models.

• Comprehensive list of active and passive safety equipment
• Suzuki’s automated emergency braking system (Radar Brake Support) is now standard on all S-Cross models
• Five star Euro NCAP score (Tested at launch in 2013)
• Seven airbags fitted as standard
• Light, impact absorbing body; speed limiter; ESP®* (Electronic Stability Programme), and tyre pressure monitoring system (TPMS)
• Adaptive Cruise Control for more relaxed driving fitted as standard on all models.

2020 Suzuki S-Cross – UK Version Side View

Standard safety equipment includes seven airbags which includes a driver’s knee airbag as well as seat belt pre-tensioners and force limiters. Euro NCAP’s tests on the front seats and head restraints showed good protection against whiplash injury in the event of a rear end collision and a geometric assessment of the rear seats also indicated good protection.

Suzuki paid particular attention to child safety in accordance with latest European legislation and pedestrian protection received a high score amongst its competitors thanks to the bonnet shape and structures for the cowl top and wipers. The bumpers also provide good impact absorption to lessen the degree of harm if the car comes into contact with a pedestrian.

The passive and active safety systems on S-Cross are designed to intelligently anticipate and react to potentially dangerous situations with an excellent level of protection. One of its major safety features is Total Effective Control Technology which is a concept for occupant protecting impact absorption and low weight developed by Suzuki. Extensive use of high tensile steel and computer aided engineering technologies make the body light, highly crashworthy as well as fuel efficient.

Standard safety equipment includes seven airbags which includes a driver’s knee airbag as well as seat belt pre-tensioners and force limiters. Euro NCAP’s tests on the front seats and head restraints showed good protection against whiplash injury in the event of a rear end collision and a geometric assessment of the rear seats also indicated good protection.

The S-Cross’s active safety equipment includes a Radar Brake Support (RBS) system on all 2020 models.  When travelling above approximately 3mph and the system detects a risk of collision with the vehicle in front, it warns the driver to apply the brakes. At higher speeds and if it senses the possibility of a collision, it warns the driver with a buzzer and also via a notification on the multi information display. The system warning can also be set for either Far or Near distance via a button on the dashboard.

If the probability of a collision has increased, the system activates brake assist which increases the braking force during emergency braking. If the system determines that a collision is unavoidable, it applies the brakes automatically. The system thus helps prevent collisions when the vehicle is driving at low speeds and helps reduce damage in the event of an unavoidable collision.

The RBS system monitors the road ahead by means of milliwave radar. The radar technology enables it to work even at high speeds, in darkness, and in rain or other bad weather. The system prevents or mitigates a collision by means of three functions which are Warning, Brake Asssist and Automatic Braking.

Adaptive Cruise Control (ACC) system
The ACC system fitted as standard on all S-Cross models combines cruise control technology with the RBS system’s milliwave radar to make driving easier and more relaxing. The system uses radar to measure the distance to the vehicle in front and automatically adjusts road speed to maintain any of three driver selected headway distances.

If there is a sufficient distance from the vehicle ahead, the car travels at the set input speed. If the vehicle in front is travelling slower the set speed will automatically reduce to allow sufficient distance to be be maintained. Once the milliwave sensor detects that the vehicle in front has departed from the lane in front the vehicle will automatically reaccelerate to the input set speed. When there is no vehicle in front, the system maintains the speed from 25mph to 100mph (where permitted) as input by the driver.

Light, impact-absorbing TECT body
The body embodies Suzuki’s Total Effective Control Technology (TECT) concept for occupant protecting impact absorption and low weight. Extensive use of ultrahigh tensile steel helps to make the new Vitara outstandingly crashworthy and fuel efficient.

Performance

• A blend of all-terrain crossover capability and on-road performance
• A powertrain delivering environmental compatibility and great performance
• Low CO₂ emissions for a C-segment crossover

2020 Suzuki S-Cross – UK Version Exterior Detail

The performance results from an exceptional combination of attributes: 4WD SUV capability, positive handling derived from the Swift and direct straight-running stability thanks to a long wheelbase. Low CO₂ emissions and fuel consumption also help fulfil the global need for environmental compatibility.

Comfort and convenience

• Interior environment designed for comfort on long journeys
• One of the largest luggage capacities in its class (430 litres)
• A panoramic sunroof with one of the largest opening areas in its class and world first double sliding glass panels (Suzuki research at first launch)

A spacious, airy cabin and a generously sized luggage area ensure convenience and comfort for the whole family during day-to-day commutes and extended weekend trips with ample luggage space and no compromise in passenger space.

An overall length of 4,300mm and wheelbase of 2,600mm allow for plenty of cabin space and the distance between front and rear occupants is 814mm. The front seatbacks are shaped to give rear passengers plenty of knee clearance to help make long journeys relaxing and even with the rear seat in the fully upright position the S-Cross has a large luggage capacity of 430 litres.

The design of the front seats offer excellent support and hold occupants firmly in place even on tight curves.  The height adjuster for the driver’s seat has a fore and aft range of 51mm and an up down range of 59mm to enable drivers with diverse physiques to choose the most comfortable position.

For rear passengers, the seatback can be set at either of two angles; one angle promotes passenger relaxation and the other creates an extra 10 litres of space in the luggage area in addition to the quoted 430 litres. The rear seat and luggage board can be repositioned to accommodate different loads, making it ideal for families.

Panoramic sunroof
The panoramic sunroof, which is standard on SZ5 models, consists of two sliding panels. The sunroof extends over the front and rear seats, making the cabin more relaxing for all occupants. When the sunroof is closed, the glass panels have a combined length of 1,000mm. When the sunroof is open, the aperture has a length of 560mm (one of the largest in this segment), giving occupants an invigorating open roof experience.

Display audio system with navigation and smartphone connectivity
The audio system fitted on SZ-T and SZ5 models has a Smartphone Linkage Display Audio  (SLDA) with a large seven inch touch panel display that enables intuitive operation. This includes a three dimensional navigation map that makes landmarks easy to distinguish, the system also allows the driver to use certain smartphone applications with MirrorLink, Android Auto and Apple CarPlay connection.

At launch, the S-Cross was the first Suzuki ‘C’ segment Crossover model and suits the needs of families with active lifestyles as well as being an attractive proposition to Fleet and Corporate buyers in the UK.

2020 Suzuki S-Cross – UK Version Rear View 3/4

Refined, high legibility instrument meters
Heightened functionality in the instrument cluster helps the user concentrate on driving. A large speedometer and tachometer flank a multi information display that shows instantaneous fuel consumption, Hybrid power flow diagram, time, outside temperature, and, in ALLGRIP equipped vehicles, the driving mode. It includes a rear-seatbelt warning and also indications for the front and rear ultrasonic parking sensors fitted as standard equipment on SZ-T and SZ5 models.
