2019 Toyota Corolla Hatchback

Inner Emotiveness

Simple. Warm. Inviting. Sensuous. Descriptors like these inspired designers’ efforts when visualizing Corolla Hatchback’s cabin. Sensuous Minimalism marinates the entire capacious space. From their supportive sport seats, front passengers are faced with a neat instrument panel that lends an open, harmonious feeling thanks to its 0.9-inch thinner upper surface and 1.7-inch wider center console dividing passengers.

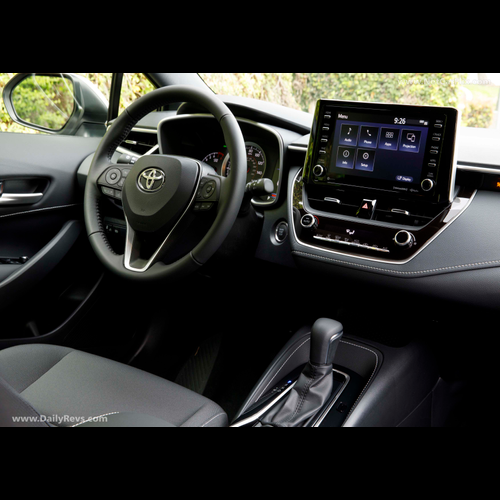

At the center of the instrument panel resides a standard high-resolution 8-inch multimedia touchscreen. The center stack screen provides access to vehicle settings, audio controls, navigation, smartphone, and Entune 3.0 apps. Climate controls, located below the multimedia portal, are fashioned in a bright, highly visible digitized configuration.

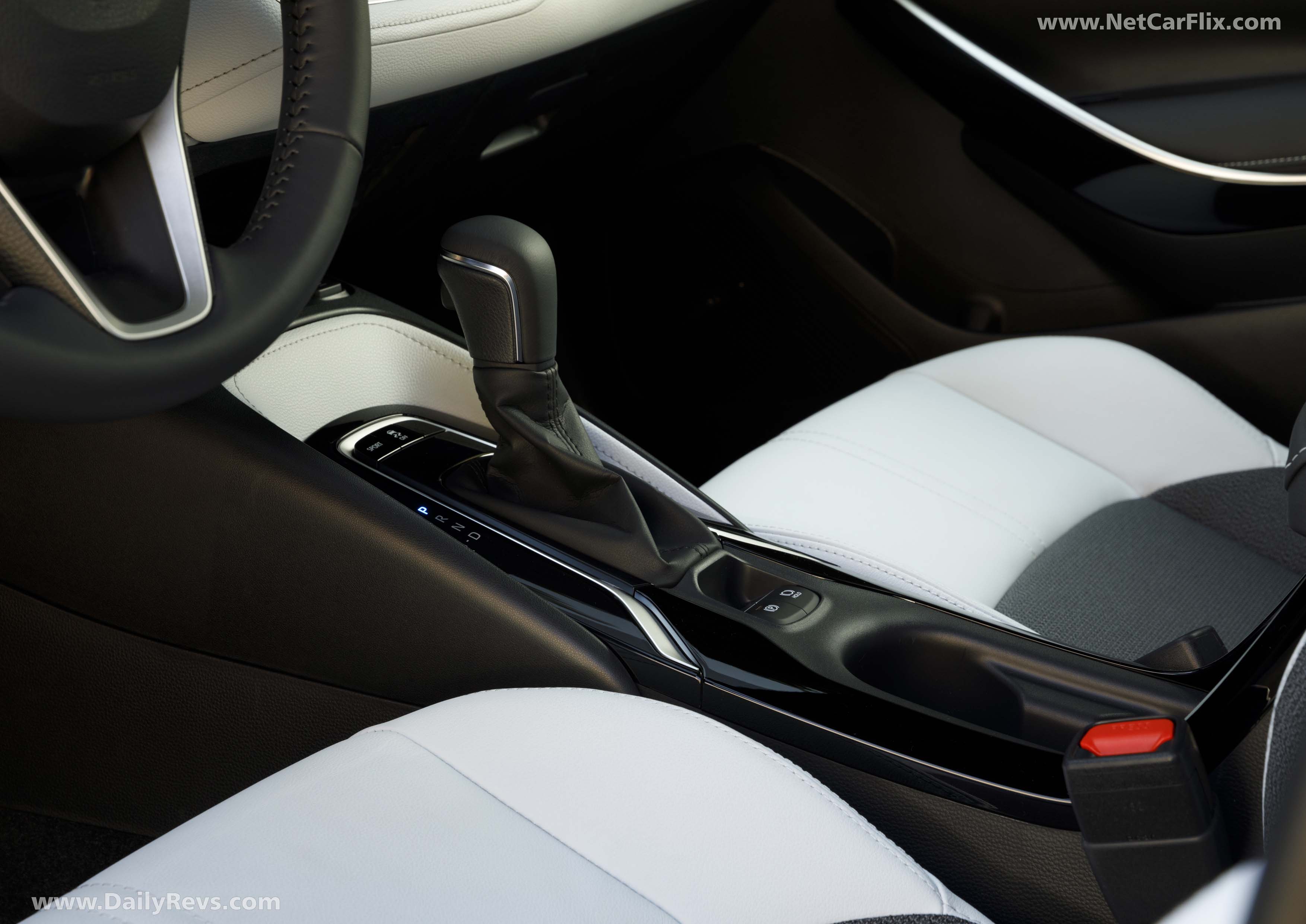

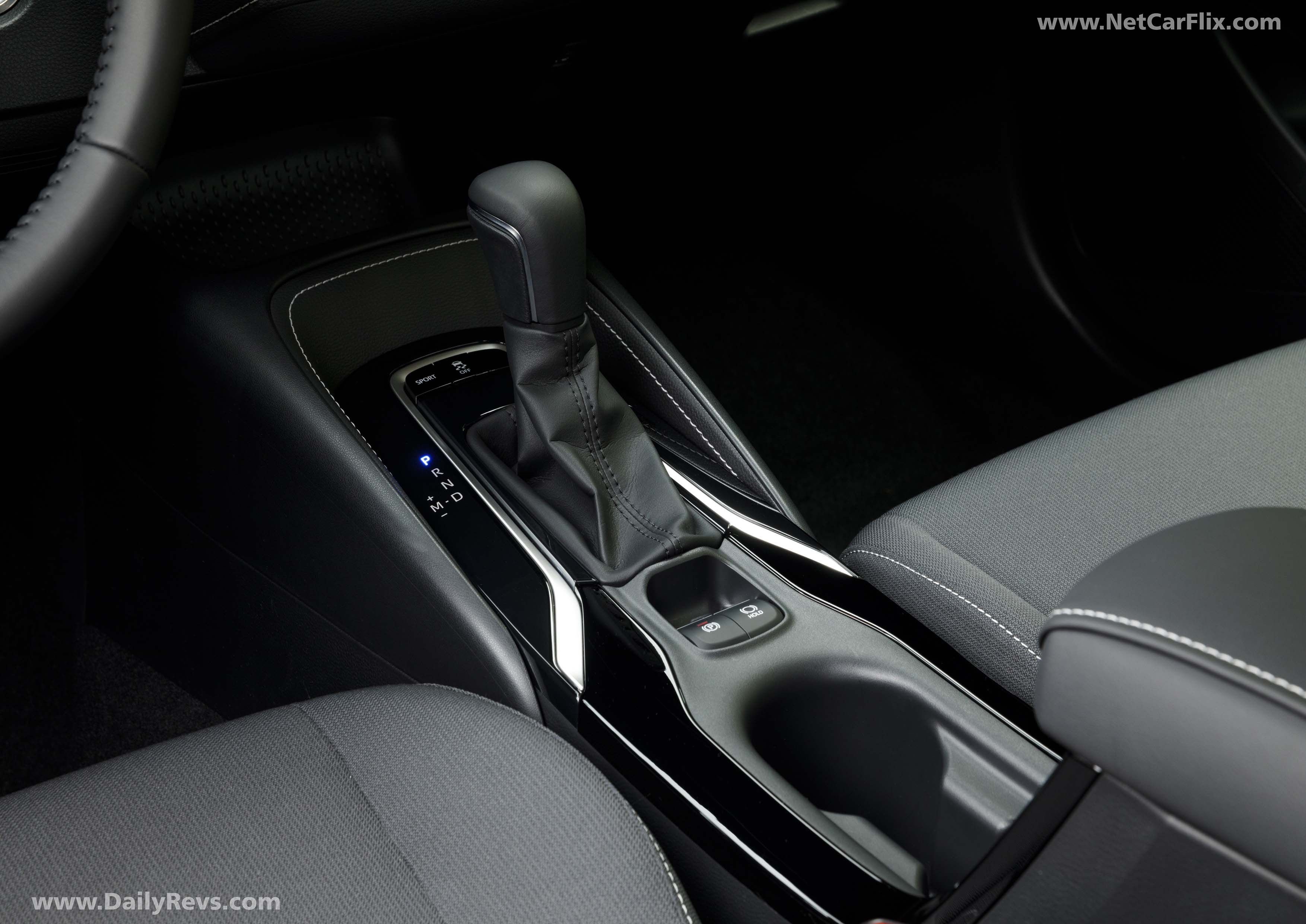

In addition to being wider, the center console is also longer to accommodate a larger variety of passenger physiques and comfort preferences. It incorporates a center tray ahead of the gearshift that can hold small items such as a smartphone or wallet, or if outfitted, serves as the Qi wireless device charging area. A 5.5-inch smartphone can easily fit inside the center console box.

High-gloss materials are paired with matte elements – silver accents with Piano Black and available contrasting stitching – to best accentuate a premium look and feel. The elimination of unnecessary lettering on switchgear, plus, the unification of all materials’ and elements’ shape, color, grain, and gloss, maximize continuity and aesthetic cleanliness. Tactility, too, is minded with the utmost consideration. Keen eyes will appreciate the minimized gaps between buttons and switches; again, furthering Toyota Corolla Hatchback’s sophisticated character.

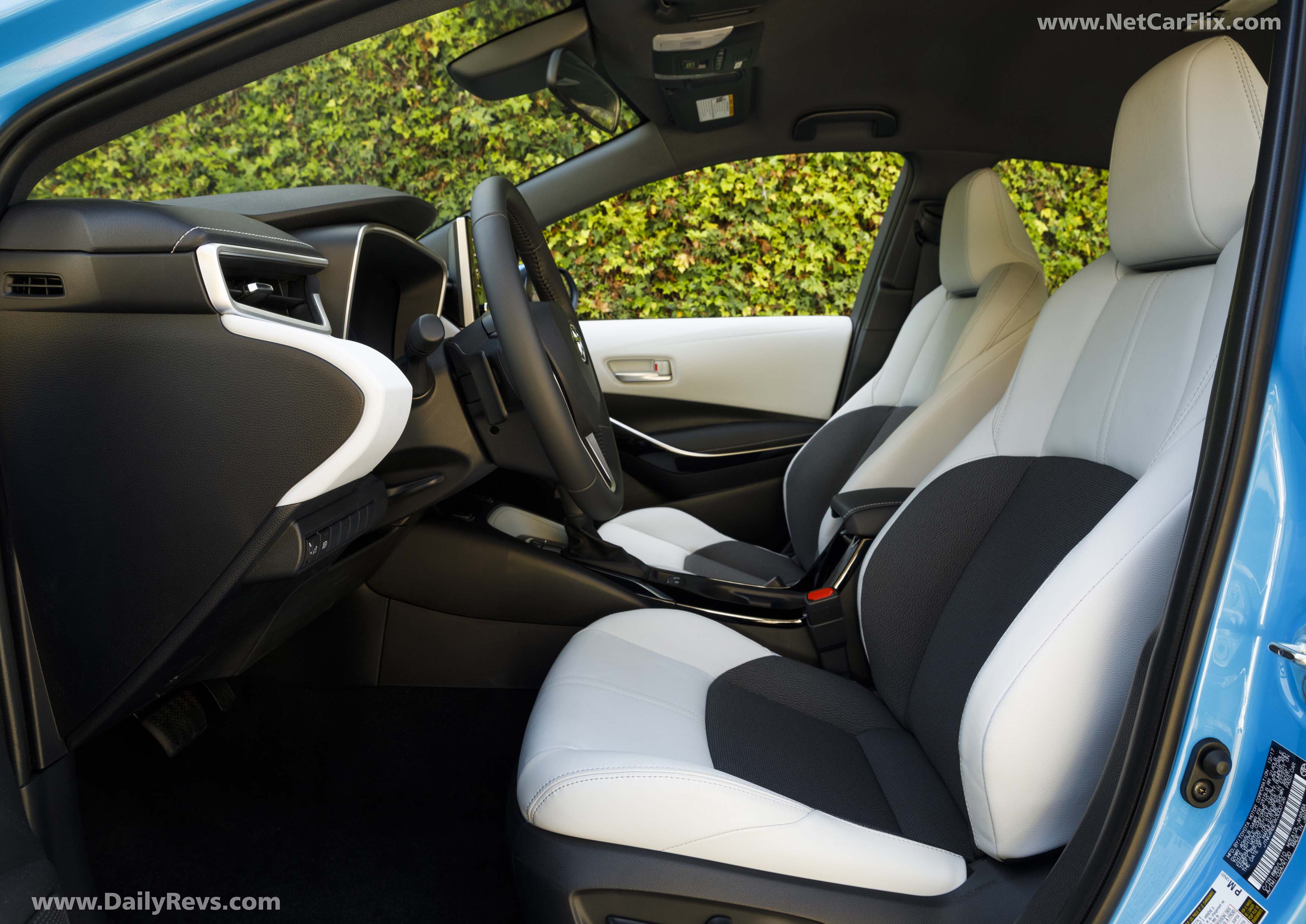

Front passengers’ hip points are lower (to 10.82 inches), and cushioning has been revised, which provides a more natural body posture and position for ideal access to the multifunction steering wheel, pedals, and gearshift. Such optimized seating allows passengers to enjoy Corolla Hatchback’s thrilling dynamics all the better. Front door storage solutions include cup holders capable of accommodating 24-ounce bottles and A4-sized documents. Not to be outdone, rear seats utilize updated cushioning to improve comfort and minimize fatigue. Furthering their convenience are upper door cup holders that accommodate 16-ounce bottles.

The standard amenity list is as impressive as the cabin’s aesthetic. SE grade is equipped with single-zone automatic climate control, leather shift knob, and paddle shifters located behind the steering wheel. An electronic parking brake, three-door SmartKey system, automatic up/down windows, and two front USB outlets are standard as well.

XSE grade builds on SE’s amenity palette by including dual-zone climate control, combination leather (leather with mélange-like fabric) seating, heated front seats, and eight-way power driver’s seat. XSE’s instrument panel and doors receive unique stitching, and behind the multifunction steering wheel, a 7-inch TFT Multi-Information Display (MID) shows vehicle information, turn-by-turn navigation, and various vehicle settings (including those pertaining to Lane Departure Alert, Lane Tracing Assist, Pre-Collision System with Pedestrian Detection and Blind Spot Monitor).

While electrifying in functionality and personality, Toyota Corolla Hatchback delivers a civilized, quiet ride. Powertrain drone and road noise have been culled thanks to revised drivetrain efficiencies, plus, the widespread implementation of sound-absorbing materials, sealants, foams, resonator ribs, and silencers. Its TNGA structure utilizes additional seals in its body panel gaps to insulate noise penetration and enhance air sealing performance. Corolla Hatchback’s Aero Stabilizing Fins located on its taillights also combat wind drone.

Multifaceted Multimedia

There’s no shortage of entertainment and connectivity capability inside Toyota Corolla Hatchback either. For SE, standard Entune 3.0 Audio includes 8-in. touchscreen; six speakers; Apple CarPlay; Amazon Alexa integration; Entune 3.0 App Suite Connect; Safety Connect; Wi-Fi Connect; Scout GPS Link Compatible; Siri Eyes Free; Auxiliary audio jack and USB 2.0 port with iPod connectivity and control; AM/FM; MP3/WMA playback capability; Voice Recognition training and tutorials; Hands-free phone capability; voice recognition and music streaming via Bluetooth; Customizable Home Screen; and Weather/Traffic info via Entune 3.0 App Suite.

Entune 3.0 Audio Plus, which is standard on XSE and optional on SE CVT, adds HD Radio and Weather/Traffic info; SiriusXM with Cache Radio; Entune 3.0 Connected Services; Service Connect; Remote Connect. Topping the range is Entune 3.0 Audio Premium that’s optional on XSE CVT. The system includes a JBL 8-speaker 800-watt system with Clari-Fi; Dynamic Voice Recognition; Dynamic Navigation; Dynamic POI Search; and Destination Assist Connect.

The JBL audio experience with Clari-Fi – having such a complete orchestration of advanced power output, hardware, structure, and software – is engineered to impress even the most perceptive audiophile.

Other JBL audio system highlights include:

• Free Standing Horn Tweeters
  • Located in the A-pillar at ear level for optimal high-frequency performance
• Next-Generation HID8 Amplifier
  • 800-watts of total power, with better performance and efficiency
• 6.7-inch Door Subwoofers
  • More powerful deep-bass response
• Premium JBL Branding
  • Located on A-pillar, door trim, and head unit
• Sealed Inner Door Panels
  • Promote cleaner, more power bass
• Wide Dispersion Midrange Speakers
  • Provide full range sound for rear passengers
• Clari-Fi Technology
  • Analyzes, rebuilds, and restores audio signals that were lost In the digital compression process

Rounding off Toyota Corolla Hatchback’s connectivity are two USB terminals (located inside the center console and instrument panel) and one AUX port (located on the instrument panel).

A Driver’s Hatchback

Toyota Corolla Hatchback’s seamless unification of comfort and sporty controllability begins at its TNGA C platform. The compact structure employs a mixture of adhesives, spot welding, and additional bracing – top to bottom, side to side – for the benefits of driver controllability and low fuel consumption. On-road feel and fuel efficiency is further refined through the extensive use of aluminum and high- and ultra-high tensile steel in the lighter-weight chassis and body. In fact, torsional rigidity is improved a massive 60 percent compared to its predecessor.

Affixed to this musculature are revised front and rear suspensions. Its front MacPherson strut setup’s geometry is changed (i.e. updated bound stopper clearance; stabilizer location) and incorporates other key augmentations like revised coil spring rate and damping force, and reduced friction in sliding parts. This all makes for a high-quality steering feel, ride comfort, and handling stability.

At the Corolla Hatchback’s rear multi-link suspension with stabilizer bar, responsiveness is sharpened through updated shock absorbers and springs, and like the front, geometry is slightly modified. Lower arm locations have moved (for improved toe-in angle during higher-speed maneuvering), as has shock absorber placement (moved forward for better cargo capacity and reduced longitudinal low frequency input). Overall, front and rear suspension friction has been reduced by 40 percent, and its center of gravity is cut by a substantial 0.8 inches.

The end result: A Toyota Corolla Hatchback that possesses an uncanny blend of balance, composure, and feel that’ll have its driver pining for windy roads – time and time again.

The Heart of Fun-to-Drive

TNGA isn’t just the genesis of Corolla Hatchback’s astute footwork and balance: An all-new TNGA-based powertrain is the heart of Toyota Corolla Hatchback’s Fun-To-Drive identity. Its 2.0-liter Dynamic-Force direct-injection inline four-cylinder engine (M20A-FKS) adopts the latest in Toyota technology and structural efficacies for gains in power, fuel efficiency, and cleaner emissions.

Physically, the engine is smaller and lighter than its 1.8-liter four-cylinder predecessor, which helps to lower Corolla Hatchback’s center of gravity and benefits its overall balance. The 2.0-liter is also quieter for improved Noise Vibration Harshness (NVH) with additions like a more rigid crank case with integrated stiffener; a lighter resin cylinder head; and a ribbed oil pan.

The M20A-FKS is equipped with Toyota’s latest D-4S fuel-injection that uses high-pressure direct-injection and low-pressure PFI (Port Fuel Injection). The setup adapts its injection method based on driving conditions so that ideal combustion is executed. The engine also features Dual VVT-i (Variable Valve Timing-intelligence), with VVT-iE (Variable Valve Timing-intelligence by Electric motor) on the intake side and VVT-i on the exhaust. VVT-iE uses one electric motor instead of oil pressure to control the variable valve timing. Together, the valve timing systems enhance power output and fuel mileage, and cut harmful emissions.

Other notable improvements to the Dynamic-Force engine include:

• Longer stroke
• Compression up to 13:1
• Enlarged valve nip angle
• Enhanced intake port efficiency with laser clad valve seat
  • Higher rate of combustion, high tumble flow, and high intake air flow volume
• Pistons with round top surface and slanted side wall
  • Consistent tumble flow and rapid combustion maintained
  • Less knocking and higher compression ratio
  • Friction reduction between piston skirt and cylinder
• Lubrication enhanced with three oil jets dedicated to each cylinder
  • Better MPG, dynamic performance, less knocking, and less oil consumption
• Lighter weight timing chain
  • Low cabin noise and reduced friction
• Drain path within crank case to return oil from cylinder head to oil pan
  • Less oil agitation caused by the crankshaft, which means less rotation resistance
• Connecting Rod made of high strength steel with optimized shape
  • Reduction in weight
• Camshaft with concave profile
  • Increased valve lift amount
• Optimized water jacket in head and block
  • Enhanced cooling and reliability

Be they a commuter or canyon cruiser, drivers will appreciate Corolla Hatchback’s available transmissions: an all-new Dynamic-Shift CVT (K120), or a six-speed iMT (Intelligent Manual Transmission) gearbox (EG60). The Dynamic-Shift CVT has simulated 10-speed Sequential Shiftmatic steps, Sport Mode, and paddle shifters. It features a number of innovative elements, including the world’s first launch gear in a passenger vehicle CVT.

Having a launch gear facilitates improved transmission efficiency in lower gear ratios where belt efficiency is typically poor. The transmission system utilizes gear drive when starting from a full stop, resulting in powerful acceleration, while at the same time, resolving the momentary sluggish feeling that was previously present during accelerator operation. Both smooth and comfortable launch performance are realized. When switching from gear drive to belt drive, the transmission system uses highly responsive gear change control technologies cultivated from automatic transmission technology.

With its launch gear in place, the belt has been tuned for higher gear ratios. This new setup not only improves the efficiency of belt operation, but it also enables the adoption of wider gear ranges, thereby realizing a class-leading gear ratio range of 7.5 for the 2.0-liter class.

Another benefit of the launch gear is a reduced input load. This enables the size of both belt and pulley components to be reduced. Furthermore, the belt angle has been narrowed and pulley diameters reduced, resulting in shifting speeds that are 20 percent faster. Powerful and predictable acceleration is realized, as is an endearing driving experience.

But the more involved driver will be engaged by the all-new six-speed iMT with downshift rev-matching control. Compared to the existing manual transmission, the new gearbox is lighter (by 15 pounds; total weight of 88 pounds) and shorter (by 0.94 inches), making it one of the world’s smallest transmissions. Its small size contributes to improved fuel efficiency.

The gearbox also offers world-leading transmission efficiency, while the use of iMT controls, which automatically adjust engine revolutions when changing gears, ensures smooth gear shifting?free of uncomfortable recoils?for the driver.

Enhanced Toyota Safety Tech

Toyota continues to lead the pack when it comes to safety, and the all-new Toyota Corolla Hatchback provides drivers and passengers with standard safety technologies that take one step closer to achieving the ultimate goal of zero casualties from traffic accidents.

Corolla Hatchback comes standard with TSS 2.0, the second generation of Toyota Safety Sense (TSS). The updated safety package adds new active-safety technologies and capabilities that enhance protection.

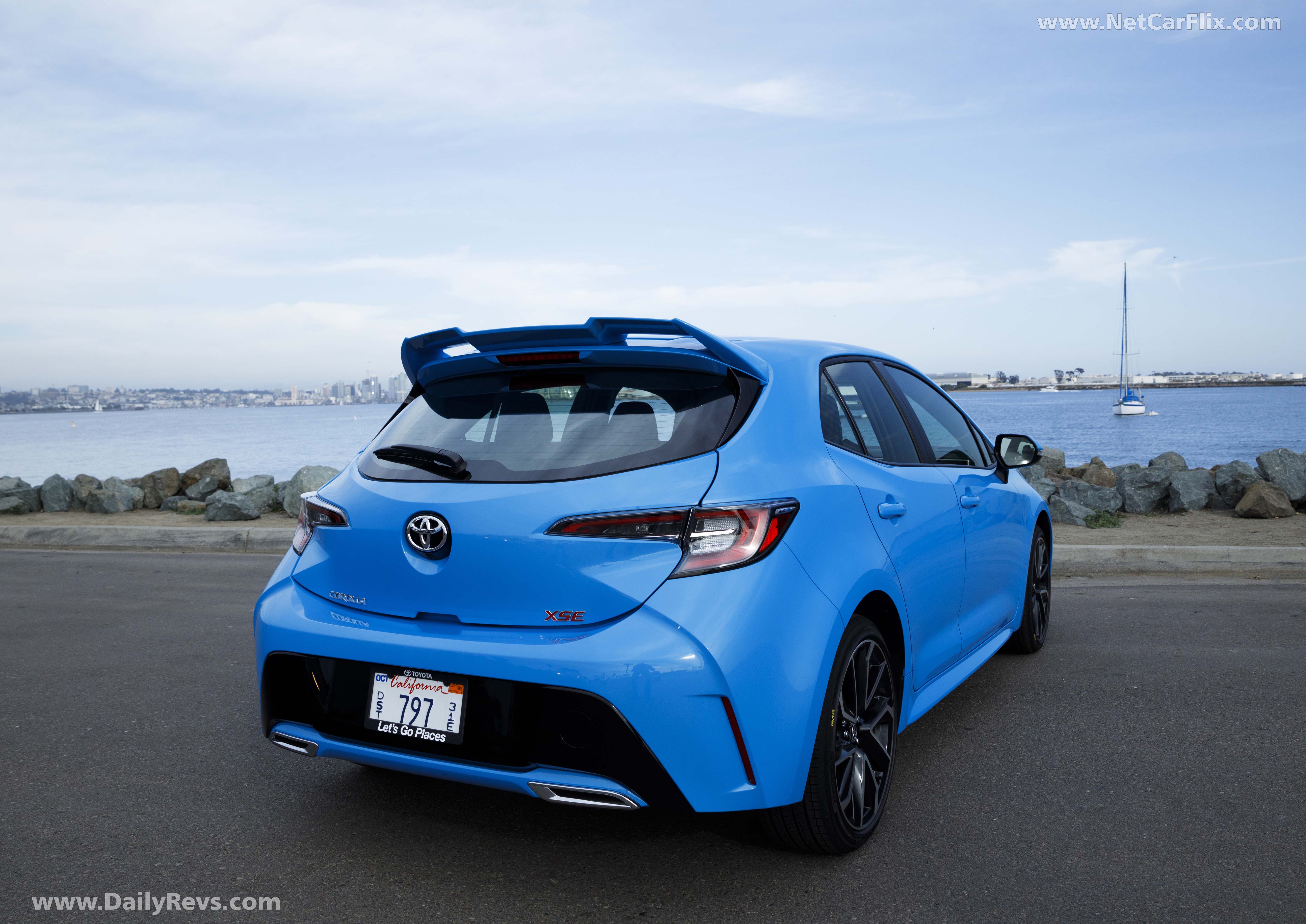

2019 Toyota Corolla Hatchback – Rear View 3/4

Breakdowns of each technology are as follows:

• Pre-Collision System with Pedestrian Detection (PCS w/PD):
  • Capability to detect a preceding vehicle or pedestrian in daytime or nighttime (nighttime is new), or daytime bicyclist (new), and alert the driver (audible and visual warnings) and/or apply brakes to help mitigate or avoid the collision in certain cases (using Forward Collision Warning (FCW), Brake Assist (BA), and Automatic Emergency Braking (AEB)).
• Full-Speed Range Dynamic Radar Cruise Control (Full-Speed DRCC):
  • For highways/freeways only. Full-Speed Range DRCC is standard on all Corolla Hatchback models, except those equipped with a manual transmission. Those having a manual transmission are equipped with DRCC. Full-Speed Range DRCC is an adaptive cruise control that is designed to function at speeds between 0 to 110 mph and enables low-speed speed matching, stopping, and acceleration/deceleration relative to a preceding vehicle traveling at a slower speed. Speed, cut-in, and distance control enhanced, as well as Turn Signal Linked control added, for a more natural response.
• Lane Departure Alert with Steering Assist (LDA w/SA):
  • Newly added to LDA w/SA is the capability, under some circumstances, to detect the road’s edge, in addition to the pre-existing capability to detect visible lane markers and the vehicle’s position in the lane. If unintentional lane deviation is detected, the system alerts the driver with audible and visual warnings. Steering Assist provides small corrective steering inputs momentarily to help the driver prevent the vehicle from unintentionally leaving its lane.
• Automatic High Beam (AHB):
  • Capability to automatically activate and deactivate high beams based on driving environment and preceding vehicle’s lights.
• Lane Tracing Assist (LTA):
• For highways/freeways only and can be enabled when using DRCC – Capability to recognize white or yellow lane markings or the path of a preceding vehicle if lane markers are temporarily not available; to identify and actively track the center of the lane by providing steering assistance to the driver (hands-on, driver-assist system). Reduces driver burden and supports safe driving, especially in traffic congestion or long highway trips. The LTA system can be turned on/off.

The 2019 Toyota Corolla Hatchback has seven standard airbags and Toyota’s Star Safety System, which includes Enhanced Vehicle Stability Control, Traction Control, Electronic Brake-force Distribution, Brake Assist, Anti-lock Braking System, and Smart Stop Technology. Blind Spot Monitor (BSM) is standard on XSE and available on SE. Corolla Hatchback also comes equipped with a standard backup camera.
