2017 Ferrari LaFerrari Aperta

The batteries consist of 120 cells assembled into eight modules, with a power output that’s the equivalent of 40 traditional batteries but weighing just 60 kg. The batteries are charged in two different ways: under braking – even hard braking when the ABS intervenes, such as when driving on a track – and every time the V12 produces more torque than required, such as in cornering. The Hybrid Power Unit is essentially the HY-KERS system brain and controls power delivery from both the V12 and the electric motor via two inverters and two DC-DC converters. Variable-frequency control makes torque delivery rapid and precise.

An auxiliary engine also replaces the traditional alternator, shaving off further weight and reducing overall package dimensions.

V12 ENGINE

The 6,262 cc V12 is the most powerful naturally-aspirated engine ever sported by a road-going Ferrari. It punches out 800 cv and spins to 9,250 rpm, to deliver absolutely extraordinary performance, driving thrills and an unmistakable Ferrari sound. These unprecedented results are the product of meticulous honing of the engine’s volumetric, mechanical and combustion efficiency.

To boost volumetric efficiency, the V12 employs continuously variable-length intakes – a mainstay in F1 engine technology until banned by rule changes – which optimise performance as a function of engine speed. Similarly, the torque and power curves are optimised across the rev range. The hybrid powertrain generates total torque in excess of 900 Nm: the instantaneous torque from the electric motor is employed at lower revs and V12 engine power and torque is optimised at higher revs. The V12’s peak torque of 700 Nm is, in fact, developed at 6,750 rpm.

Additionally, the entire intake system – from the dynamic air intakes on the top of the rear wheelarches to the intake plenum – was designed to maximise internal fluid-dynamics. The engine also boasts a very high 13.5:1 compression ratio for maximum combustion chamber efficiency.

The engine’s soundtrack plays a huge role in its emotional impact: meticulous tuning has resulted in a full, harmonious sound that’s more intoxicating than ever. The equal-length 6-into-1 exhaust system was hydroformed using Inconel as in F1 to help keep overall weight down with the additional benefit of very high temperature and stress resistance characteristics.

CHASSIS

To retain the same running gear and performance as the LaFerrari coupé in this new open-top model, Ferrari’s engineers worked on two main areas: the chassis and aerodynamics.

With the chassis, the focus was entirely on the lower section which had to be reinforced because it is subject to different stresses caused by force lines which, in the coupé, converge in the upper part.

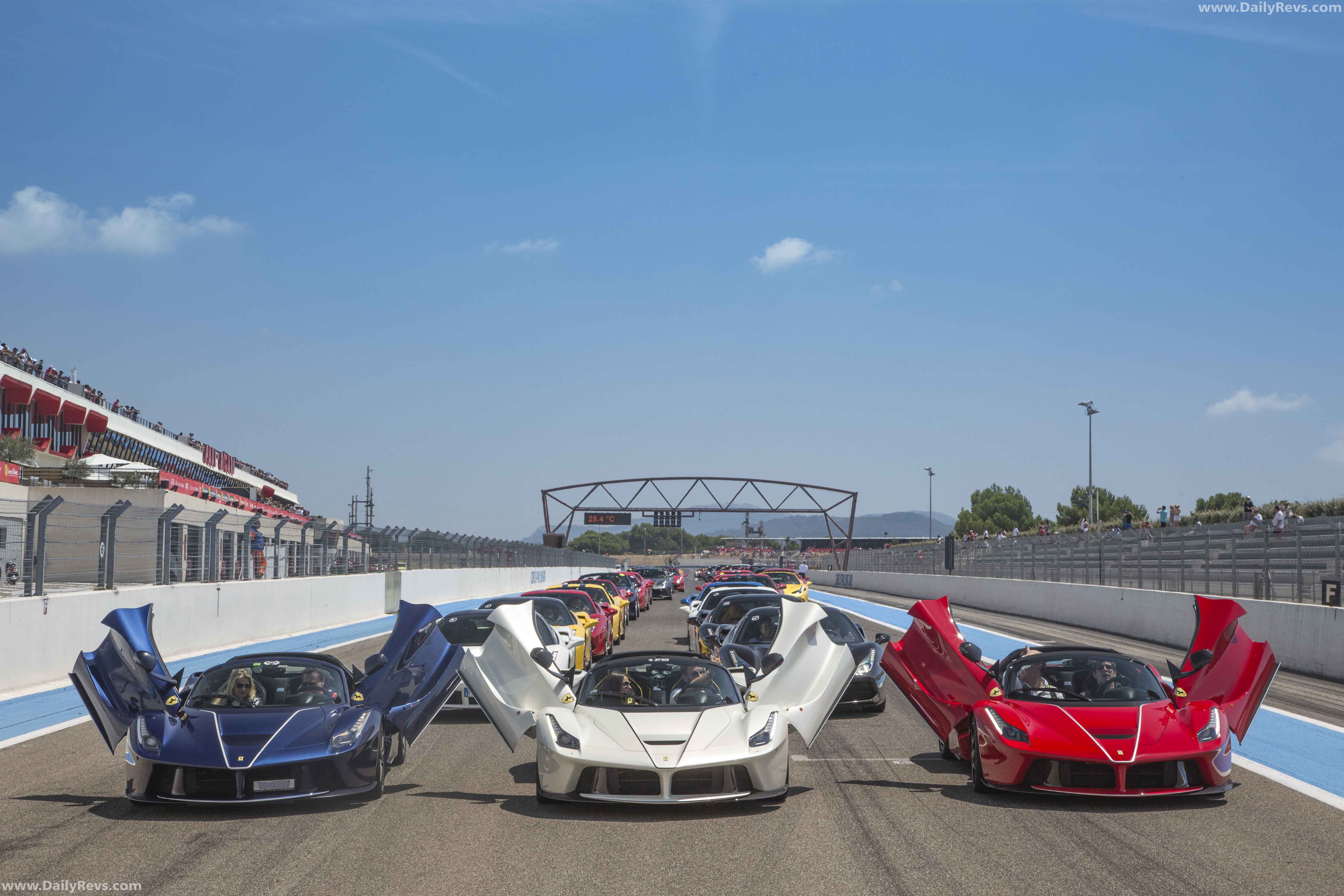

The elimination of the roof also demanded a review of the door rotation system. The Aperta has the same butterfly doors as the LaFerrari coupé although, when fully open, they are now at slightly different angle as a result of safety-focused re-engineering demanded by its open-top configuration. This in turn led to modifications to the geometry of both the wheelarches and flanks. Specifically, a carbon-fibre insert, which incorporates an aerodynamic vent, was added to allow the doors to rotate. However, the insert itself has also become one of the Aperta’s signature styling elements, a flourish that, although absolutely distinctive, does not interfere in any way with the original LaFerrari lines.

A string of targeted modifications which, despite a small increase in weight, allow the LaFerrari Aperta to deliver the same torsional rigidity figure as the LaFerrari, thus putting the Aperta at the top of supercar category in terms of dynamic performance.

AERODYNAMICS

The greatest aerodynamic challenge for the Maranello technicians was to retain the coupé’s extreme performance capabilities. Their goal with the LaFerrari Aperta’s design was to achieve the same drag figure as the LaFerrari, even when driving without the hard top in place.

To effectively manage the hot air flow from the radiators through the bonnet, the angle of inclination of the radiators was modified. In the coupé, the radiators are angled to ensure that the air flow hugs the bonnet: in the LaFerrari Aperta, the radiating masses are angled backwards to direct the air flows out along the underbody. This solution results in complete separation of the hot air from the flow reaching the cockpit, keeping temperature levels for occupants comfortable.

The new layout of the radiating masses made it necessary to create a duct that could channel air from the upper section of the front grille over the bonnet. This solution generates downforce depending on the variations in the flow momentum striking the car.

Furthermore, deflecting the hot air to the underbody also meant that the vortex generators needed to be redesigned. The front dam is now longer while the underbody surface around the longitudinal vortex generators has been lowered to boost the ground effect and thus the car’s ability to generate efficient downforce.

The aerodynamic package is completed by two small L-shaped flaps on the upper corners of the windscreen which, in the absence of a hard top, generate a coherent vortex that interacts with the flow being deflected towards the rear header rail, diverting it upwards to reduce the compression on the rear section of the cabin, thereby reducing drag. This system ensures that the open-top car’s drag is similar to the coupé version.

In terms of open-top aerodynamic comfort, an innovative integrated system was developed. The high-speed air flow that would otherwise enter the cabin from the top of the windscreen is captured by an angled wind-stop fixed to the parcel shelf. The wind-stop is angled to channel the flow through spaces in the car’s interior structure before exiting at a slower speed behind the passenger seats. This delivers a level of interior comfort in line with other convertibles in the Ferrari range without increasing drag.

DESIGN

LaFerrari Aperta retains intact the avant-garde styling of the coupé, a model that represents the peak of the synergies between the engineering and development departments and Ferrari’s Styling Centre. The body’s shape is very sculptural and aerodynamically functional, with an innovative formal language. Its fluid forms lend a sense of huge power, while the F1-inspired nose and the muscular power of the tail section reveal the car’s extreme, sporty character.

Seen from the side the LaFerrari Aperta has a sharp, downward-sloping nose and a very low bonnet which emphasises its muscular wheelarches. The result is strongly reminiscent of the gloriously exuberant forms of late-1960s Ferrari sports prototypes, such as the 330 P4 , a model that was also built in open and closed coupé versions. The ratio of the front and wheelarch dimensions are also very much in line with Ferrari tradition.

The styling is underscored by a discrete model-specific livery with just a few graphic accents in a contrasting colour defining the main styling contours. Equally, the cabin features detailing that coordinates with the livery, as well as new seat upholstery in which leather is combined with Starlite Alcantara.
