2010 Mercedes-Benz E63 AMG Estate

Driving dynamics and ride comfort – the Mercedes-Benz E63 AMG Estate delivers on both counts

Like the engine and power transfer, the newly developed AMG RIDE CONTROL sports suspension offers the ultimate in individuality. Outstanding driving dynamics and typical Mercedes long-distance comfort go together as an optimum synthesis in the Mercedes-Benz E63 AMG Estate. While new steel spring struts are used on the front axle, the rear suspension features AMG-specific air springs. The advantage of this solution is that the front steel springs ensure more sensitive responses while the rear air struts with their automatic level control system keep the vehicle at a constant height irrespective of the load.

A new, electronically controlled damping system automatically varies the damping characteristics according to the driving situation, reducing the roll angle of the body. The result is instant modification to provide the best possible ride comfort together with the greatest possible agility. In addition the driver is able to choose between the three suspension modes of Comfort, Sport and Sport plus at the touch of a button. The Mercedes-Benz E63 AMG Estate is also equipped with a newly developed, dedicated front axle with a 56-millimetre wider track, a tubular stabiliser, new control arms, new elastokinematics and new hub carriers for more negative camber – thereby providing more grip when taking bends at speed. This is a highly sophisticated axle design whose principle has already proved its worth in the Mercedes-Benz C63 AMG Estate. The rear axle likewise has more negative camber, optimised elastokine-matics and a new subframe mounting for greater stability at the physical limits.

Newly developed power steering and individual 3-stage ESP®

A more direct steering feel comes courtesy of the all-new speed-sensitive rack-and-pinion steering. The steering ratio of 14 : 1 is 22 percent more direct than in the standard production models, while a more rigid steering column plus the reconfigured characteristic mapping of the speed-sensitive servo assistance ensure better steering precision and improved road contact.

The 3-stage ESP® familiar from the Mercedes-Benz SL63 AMG and C63 AMG enables individual settings to be selected – with clear benefits in terms of driving pleasure. The ESP® button in the AMG DRIVE UNIT allows the driver to choose between “ESP ON”, “ESP SPORT” and “ESP OFF” – with the currently active mode shown in the central display of the instrument cluster. Perfect deceleration even when driving extremely briskly is ensured by the AMGhigh-performance braking system with 360-millimetre, internally ventilated and perforated brake discs all-round. Particularly resistant, motorsports-tested composite technology is used at the front axle. The newly developed, optional ceramic composite brakes with larger brake discs guarantee even better brake performance and a longer service life. The ceramic brake discs will perform reliably at even higher operating temperatures thanks to their greater hardness, all combined with an impressive weight reduction of around 40 percent. The reduced unsprung masses translate into even more agile handling, particularly on fast motorway bends.

Optimum grip is ensured by the 18-inch, titanium grey, high-sheen AMG five-spoke light-alloy wheels with a width of nine and 9.5 inches and mixed tyre sizes of 255/40 R 18 at the front and 285/35 R 18 at the rear. Lightweight, forged 19‑inch AMG light-alloy wheels with size 255/35 R 19 tyres at the front and 285/30 R 19 at the rear are also available as an option.

AMG bodystyling and wider front wings

The newly developed front axle with its wider track calls for wings that are 17 mm wider. The stylish integrated “6.3 AMG” lettering leaves the connoisseur in no doubt about the unique credentials of the high-performance estate. The AMG bodystyling also includes a front apron with large cooling air intakes, air outlets at the side and the AMG-specific LED daytime driving lights. In conjunction with the optional Intelligent Light System (ILS), the Mercedes-Benz E63 AMG Estate is equipped with tinted main headlamps. The side skirts and the rear apron with its black insert also guarantee the car’s striking looks. Both styling features combine effortlessly with the graceful line that follows the rear wheel arches and lends a clear shape to the imposing, muscular contours of the rear wings. The standard specification includes ultra-fast LED tail lights and direction indicators. To create a lasting impression – on the eye and the ear – the sports exhaust system has two newly designed, chrome-plated twin tailpipes.

Luggage compartment with the largest capacity and great practicality

Thanks to the wheelbase that has been enlarged by 20 millimetres, the Mercedes-Benz E63 AMG Estate not only offers better ride comfort but also more space and luggage compartment capacity than the previous model. With its capacity of 695 to 1950 litres, the luggage compartment is not only larger than before but also leaves the competition standing when it comes to the essential luggage compartment dimensions and capacity. This highly practical concept paves the way for numerous options for transporting sports equipment, holiday luggage or high-quality designer furniture.

Standard equipment for the Mercedes-Benz E63 AMG Estate includes the main components of the EASY-PACK system such as the folding load compartment floor with two loading levels and collapsible crate, the load compartment cover, quickfold to fold down the 1/3:2/3-split rear backrest easily and the EASY-PACK tailgate, which can be opened and closed electrically.

Interior with sporty feel-good atmosphere

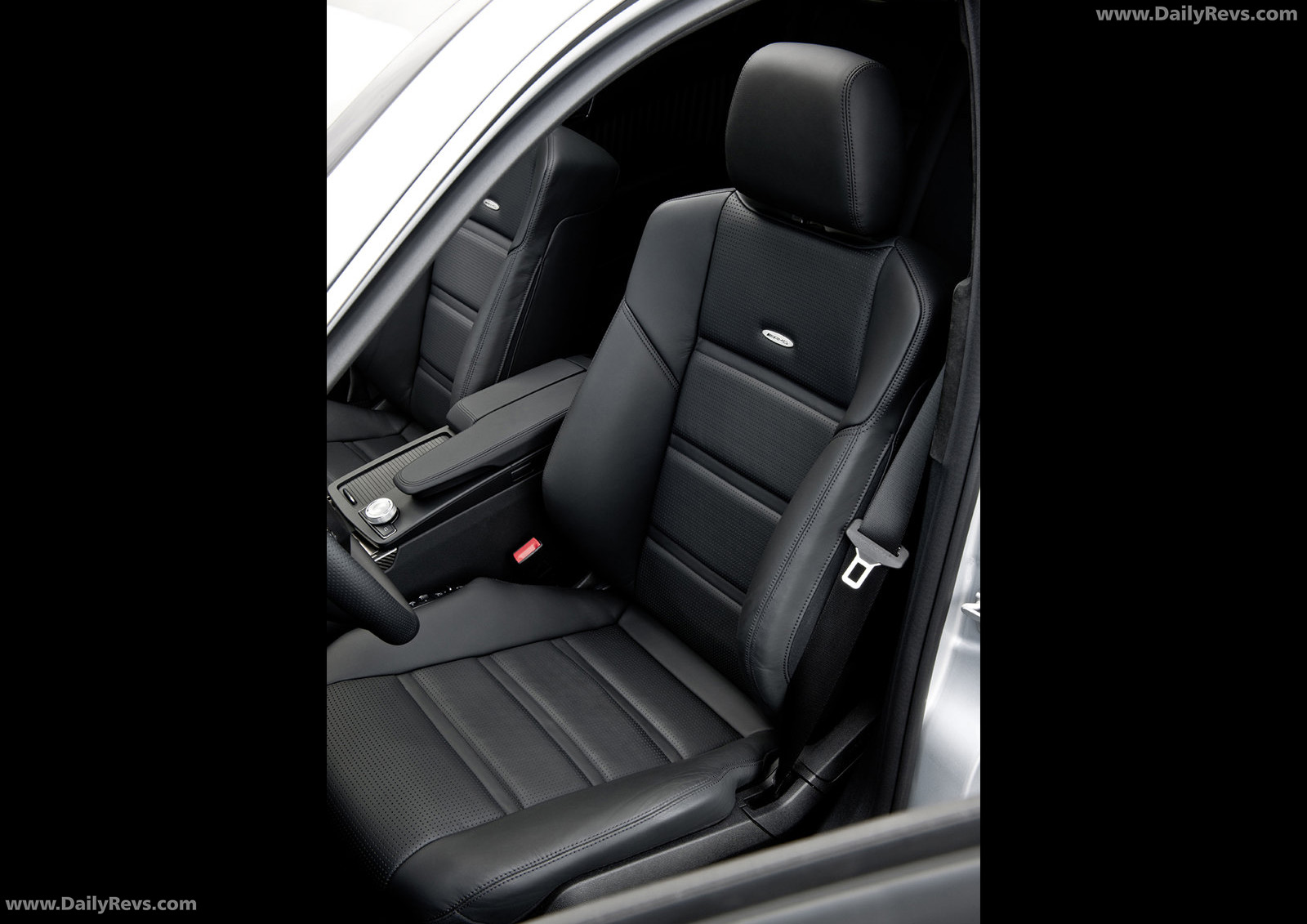

The newly designed interior of the high-performance estate is an exciting blend of high-grade materials and functional sportiness. Exclusive features include the dedicated, electrically adjustable sports seats with improved lateral support and the sports steering wheel in a four-spoke design with aluminium shift paddles. The AMG DRIVE UNIT provides adjustments for the MCT sports transmission, the 3-stage ESP®, the suspension set-up and the AMG drive modes. The E-SELECT selector lever in the centre console is a completely new feature for the DRIVE UNIT. The driver can shift directly between R, N and D simply by nudging the lever, all thanks to drive-by-wire; the parking lock P can be selected conveniently by pressing a button. Standard equipment also includes high-grade leather upholstery in three different colours, the AMG instrument cluster with an AMG main menu as well as the door entry sills with AMG lettering and a sports pedal cluster – both in brushed stainless steel.

Optional extras from the AMG Performance Studio are also available ex factory:

• Lightweight, forged 19-inch AMG light-alloy wheels with size 255/35 R 19 tyres at the front and 285/30 R 19 at the rear
• AMG composite ceramic braking system
• Brake callipers, painted red
• Rear axle locking differential with 40 percent locking action
• AMG Performance steering wheel in a three-spoke design with Alcantara® inserts in the grip areas
• AMG carbon-fibre trim elements
• Illuminated AMG door entry sills
• AMG Driver’s Package (top speed increased to 280 km/h, attendance at driver training at the AMG Driving Academy)
• AMG floor mats

Other optional extras include:

• AMG Exclusive package: nappa leather for seat upholstery, top section of the dashboard, beltline, armrests on the doors as well as the centre console and door centre panels. Roof liner with sun visors and A, B and C-pillars in Alcantara®, AMG floor mats
• COMAND APS
• designo range: ten colours and nine leather upholstery options
• EASY-PACK load securing rails to secure the cargo incl. EASY-PACK load sill guard
• Driving Assistance package
• KEYLESS-GO package
• Media interface
• Reversing camera for PARKTRONIC
• Surround sound system
• Active and passive safety at a new level

Just like the Mercedes-Benz E63 AMG Saloon the new AMG Estate meets the very highest expectations with respect to active and passive safety. Standard features include the new drowsiness detection system ATTENTION ASSIST, the unique anticipatory occupant protection system PRE-SAFE®, seven airbags and crash-responsive NECK-PRO head restraints. On request the safety features can be brought to a level unprecedented in this vehicle class with the Lane Keeping Assist and Blind Spot Assist systems, the PRE-SAFE® Brake with an automatic emergency braking function, Adaptive Highbeam Assist, Night View Assist and Speed Limit Assist.

The market launch of the new Mercedes-Benz E63 AMG Estate is scheduled for February 2010.

Technical Specifications

• Cylinder arrangement: V8
• Valves per cylinder: 4
• Displacement: 6208 cc
• Bore x stroke: 102.2 x 94.6 mm
• Output: 386 kW/525 hp at 6800 rpm
• Max. torque: 630 Nm at 5200 rpm
• Fuel consumption NEDC combined: 12.8 l/100 km
• CO2 emissions: 299 g/km
• Acceleration 0-100 km/h: 4.6 s
• Top speed: 250 km/h
